PRODUCT
Megahawk HVLS Fans
Energy Saving
Optimized for efficiency, reducing power consumption while maintaining strong airflow.
Powerful Wind
Generates 14,250 m³/min airflow, outperforming standard blades’ 11,250 m³/min for superior circulation.
Low Noise Operation
Designed to operate quietly, ensuring a comfortable and noise-free environment.
Frequency Conversion
Utilizes advanced technology for flexible speed control, enhancing efficiency.
Multiple Protection
Equipped with various safety features to ensure reliable and secure operation.
Easy Installation
Simple setup process, requiring minimal effort and specialized tools for installation.
SPECIFICATIONS
Technical Specifications
| TECHNICAL SPECIFICATIONS | 8.3FT (2M) |
| COLOR | GOLDEN BLACK |
| LIGHT SOURCE | LED 18W |
| ROTATE SPEED RANGE | 0-130RPM |
| WEIGHT | 12.3KG |
| INPUT POWER | 0.1KW |
Green
Save Cost
Intelligent
Remote Control (Optional)
Light Source (Optional)
| TECHNICAL SPECIFICATIONS | 9.8FT (3M) |
| AIR VOLUME | 5000M3/MIN |
| ROTATE SPEED RANGE | 100RPM |
| WEIGHT | 67KG |
| INPUT POWER | 0.3KW |
You can customize your own HVLS Fan’s color
Light Source
(Optional)
| TECHNICAL SPECIFICATIONS | 16FT (4M) |
| AIR VOLUME | 8000M3/MIN |
| ROTATE SPEED RANGE | 95RPM |
| WEIGHT | 72KG |
| INPUT POWER | 0.5KW |
You can customize your own HVLS Fan’s color
Light Source
(Optional)
| TECHNICAL SPECIFICATIONS | 18FT (5M) |
| AIR VOLUME | 11,000M3/MIN |
| ROTATE SPEED RANGE | 75RPM |
| WEIGHT | 77KG |
| INPUT POWER | 0.7KW |
You can customize your own HVLS Fan’s color
Light Source
(Optional)
| TECHNICAL SPECIFICATIONS | 20FT (6M) |
| AIR VOLUME | 12500M3/MIN |
| ROTATE SPEED RANGE | 10-65RPM |
| WEIGHT | 87KG |
| INPUT POWER | 1.0KW |
You can customize your own HVLS Fan’s color
Light Source
(Optional)
| TECHNICAL SPECIFICATIONS | 23FT (7M) |
| AIR VOLUME | 14500M3/MIN |
| ROTATE SPEED RANGE | 10-57RPM |
| WEIGHT | 92KG |
| INPUT POWER | 1.5KW |
You can customize your own HVLS Fan’s color
Light Source
(Optional)
FEATURES
Notable Features
Safe Suspension Device
Multi-protection And Attention To Detail
It passes SGS certification and can carry up to 1000kg load.
1/6
Aerofoil Blades
Multi-protection And Attention To Detail
Aviation grade high strength aluminium magnesium alloy blade, internal reinforcement structure, good toughness, light weight, long life to ensure blade safety.
2/6

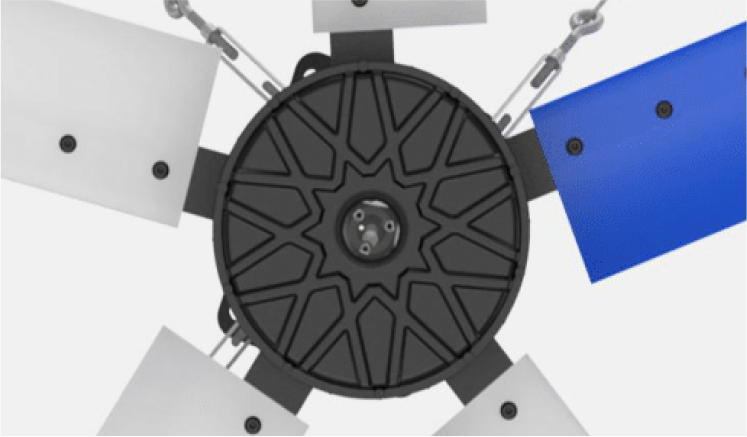

Optional Light Source
Multi-protection And Attention To Detail
High Power, Energy-saving LED Hanging Light
3/6

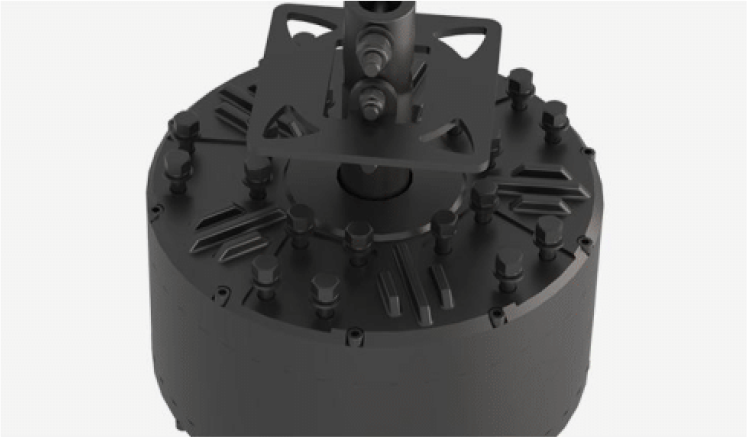

Chassis
Durable And Strong Frame Support
Made of Aluminium Alloy, our drive hub are made using 1500T Hot Press Forging to ensure maximum mechanical efficiency.
4/6
Ultra-Quiet DC Inverter Motor
Long Lasting And High Durability
Using elevator-grade rare earth, and the world’s highest density pure copper automatic wiring technology.
5/6
Embedded Architecture
Easy And Simple Installation
The blade is directly connected to the chassis and the protection plate, which is not only convenient to install but also reduces the overall weight of HVLS fan.
6/6
FAN SELECTION GUIDE
How to Choose the Right Fan for Your Needs?
Area coverage may be affected by site conditions, environment, ceiling height, and other factors.
